Navon

Precision. Beyond Reach.

The ultimate GNSS receiver with integrated Laser & IMU.

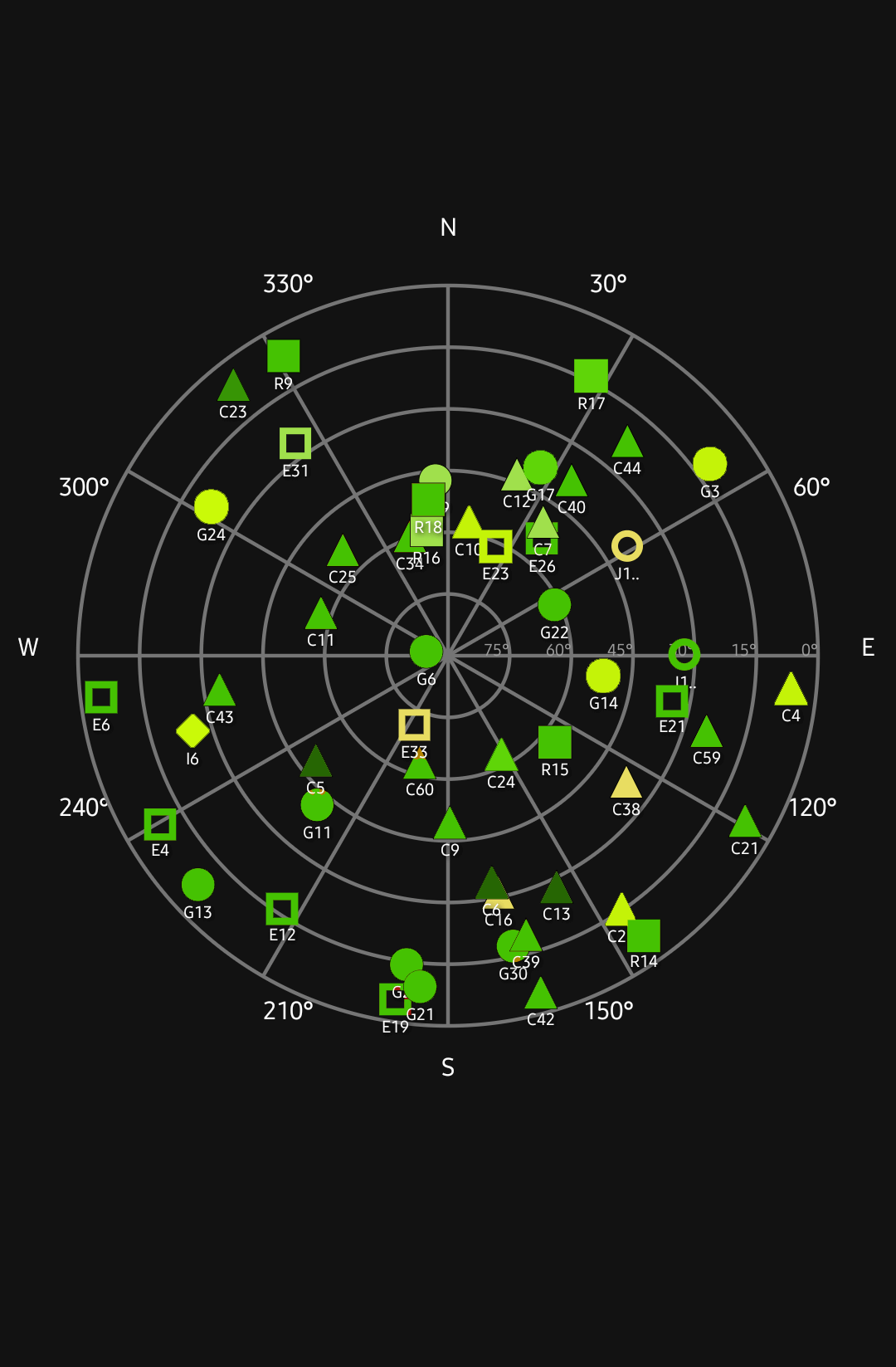

Multi-Band GNSS + NavIC.

Unrivaled signal tracking anywhere.

Experience robust fixing even under dense tree canopy or in urban canyons. Navon tracks all major constellations (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, NavIC) across multiple frequencies.

Now featuring full support for India's NavIC system for superior regional accuracy and reliability.

All-Day Power.

Forget the charger. Focus on the job.

Get up to 24+ hours of continuous RTK operation on a single charge. When you do need to top up, universal USB-C fast charging gets you back to 100% quickly using standard power banks or vehicle ports.

RTK Mode - 24HR+ | Base Mode - 15HR+

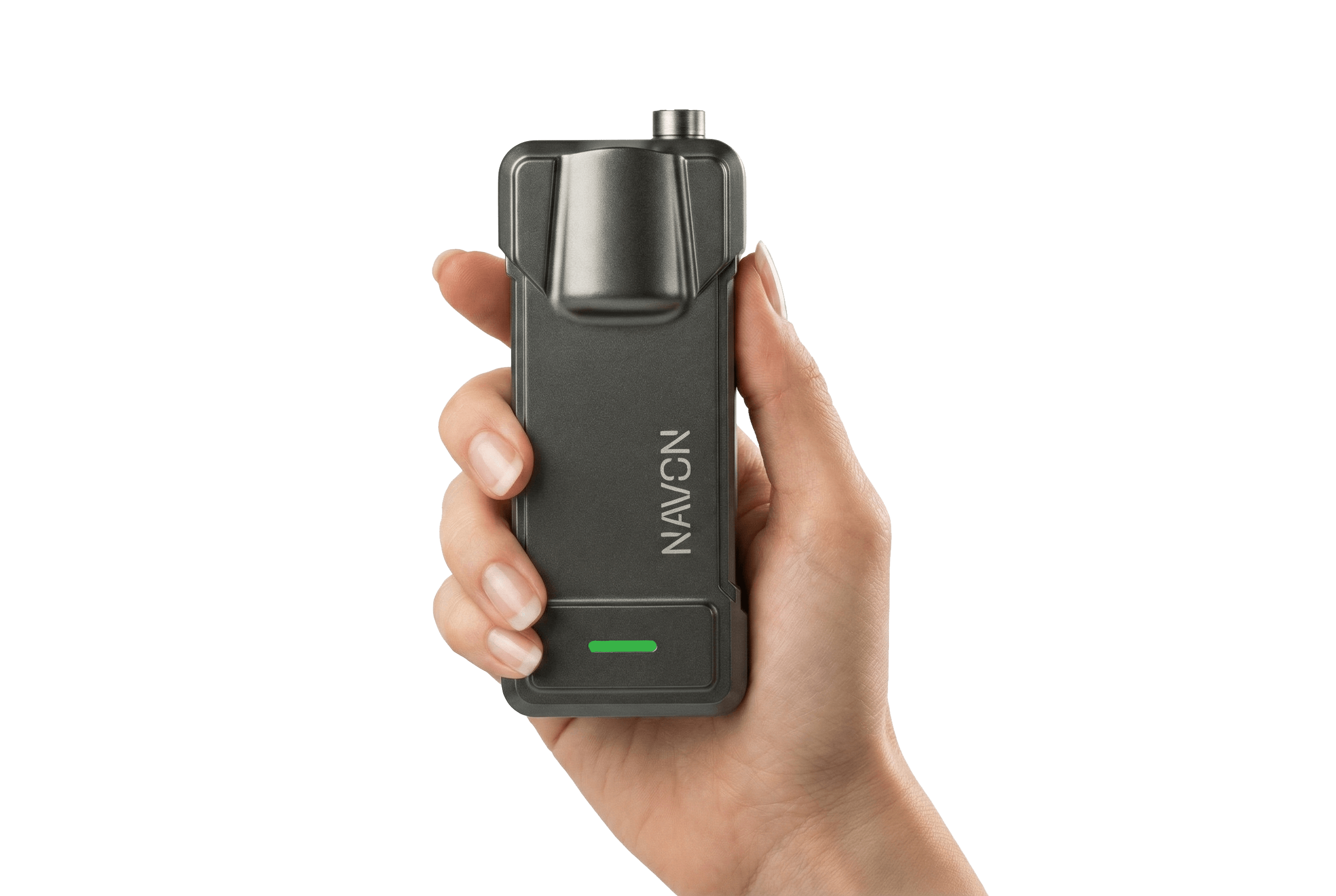

Ultra-Portable & Tough.

Built for the real world.

Weighing less than 500g, Navon fits easily in your pocket or pouch, redefining portability without sacrificing performance.

It is built to stringent IP68 standards to withstand water immersion, dust, and drops on the toughest job sites.

Effortless to Use.

Zero training required.

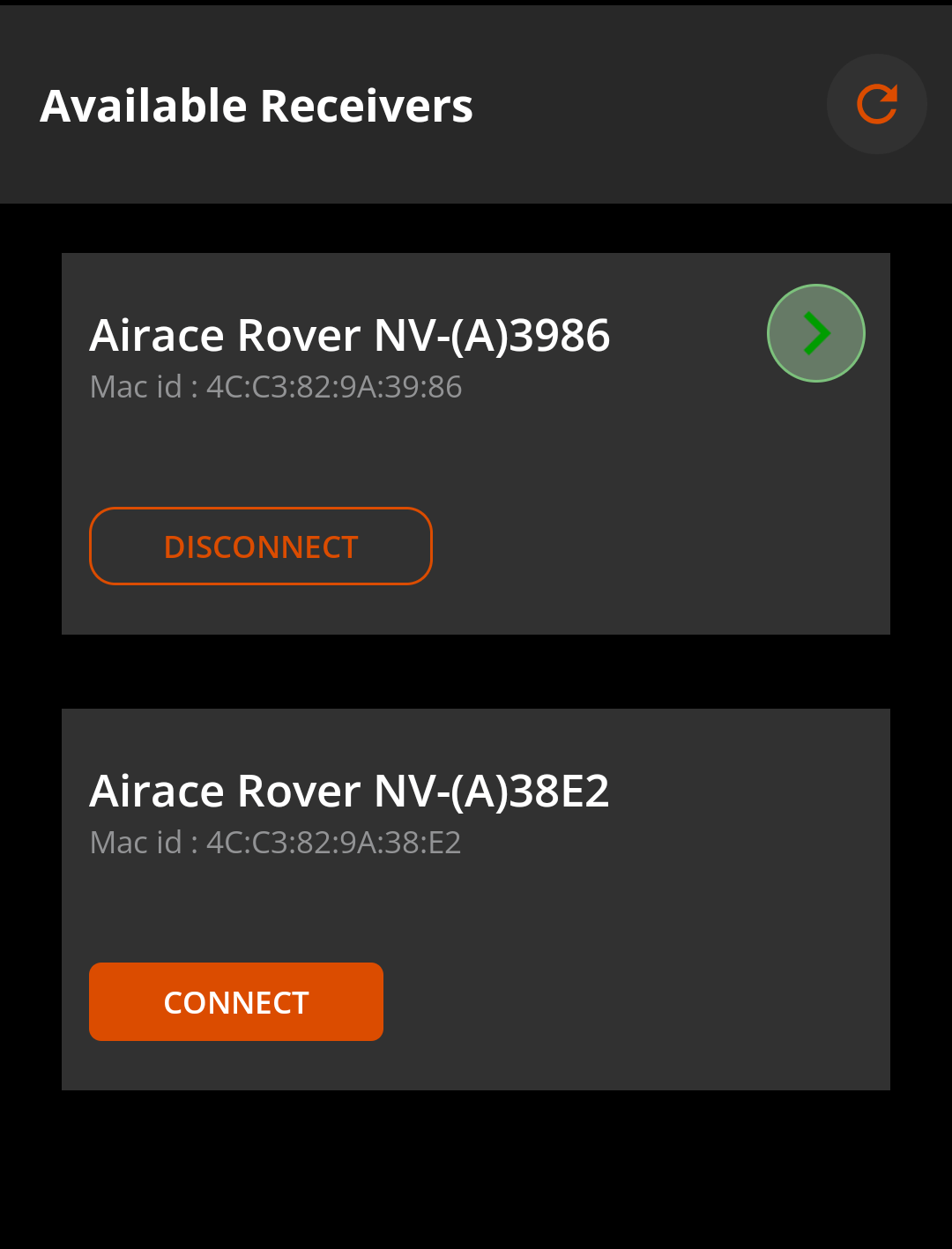

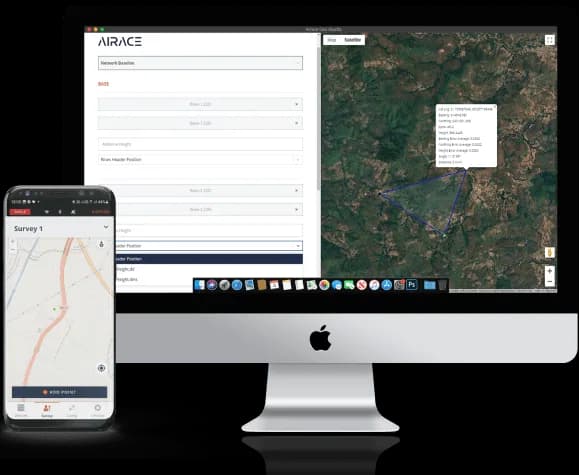

Complexity shouldn't slow you down. With simple one-button startup and instant Bluetooth connection to our intuitive Airace One app, anyone on the team can start collecting centimeter-accurate data immediately.

NEW

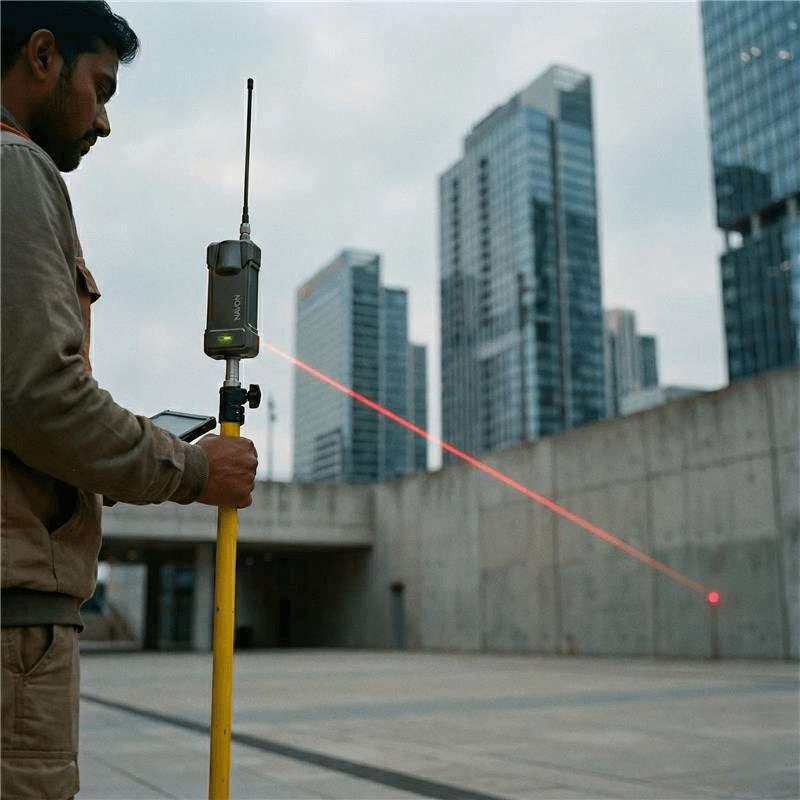

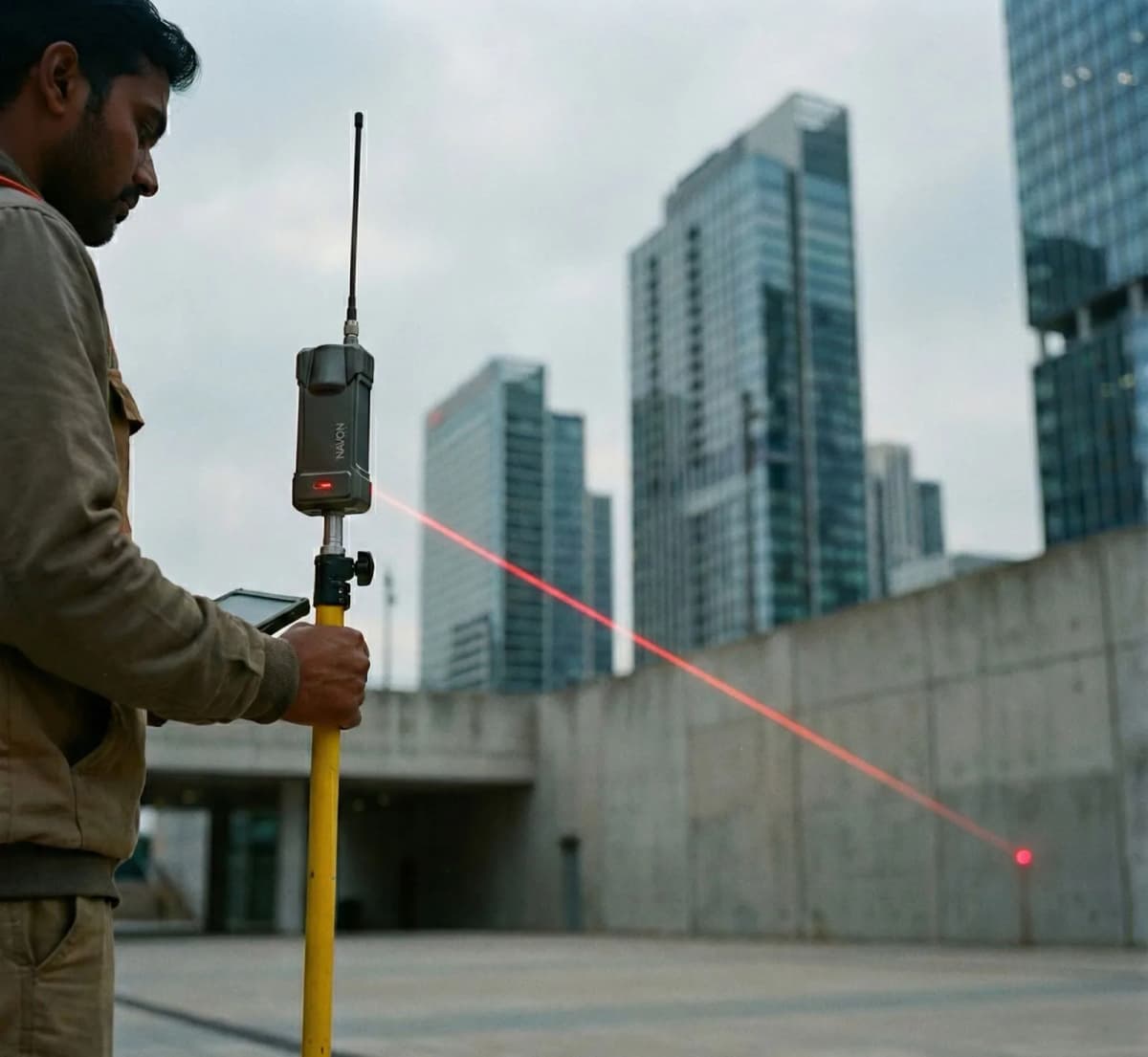

Laser Integration.

Measure the unreachable.

Corners, trenches, and fenced-off areas are no longer obstacles. The integrated laser distance meter allows you to measure offset points without physically placing the receiver there.

Reflectorless measurement up to 20m
Automatic offset calculation
Safe workflow for dangerous spots

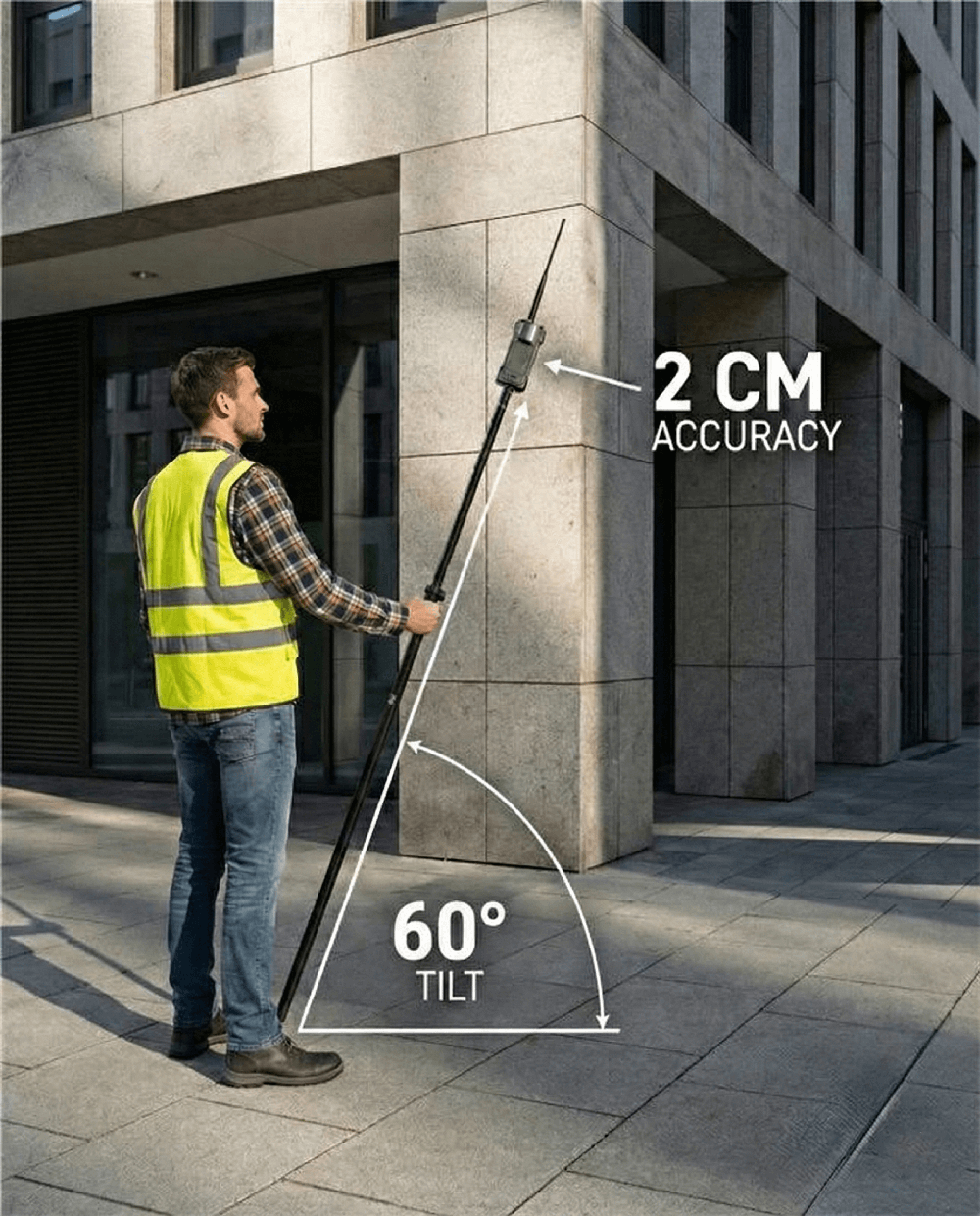

9-Axis IMU.

Tilt it. Shake it. It just works.

Forget the bubble level. Our advanced Inertial Measurement Unit (IMU) compensates for pole tilt up to 60° in real-time. It is calibration-free and resistant to magnetic interference.

60° Tilt Compensation Active

Technical Specifications

Receiver Specification

SIGNAL TRACKING & SIGNAL RECEIVED

GPS: L1, L1 C/A, L2, L2 C, L2 E, L2 P, L5

GLONASS: L1, L2, L2 C/A, L2 P, L3

BEIDOU: B1, B2, B2a, B2b, B3

GALILEO: E1, E5a, E5b, E5ab, E6

QZSS: L1c/a, L1c, L5, L2c, L6

NAVIC: L5

SBAS: WAAS, EGNOS, BDSBAS, MSAS, GAGAN, SDCM

L-BAND

NUMBER OF CHANNELS

1200+ Channels

UPDATE RATE

Up to 20Hz

MEMORY

Internal memory of 32 GB

RTK & PPK BASELINE

Up to 100KM

PPP POSITIONING

Any point on Earth

IMU POSITIONING

9 DOF, Calibration Free (0° - 60° tilt compensation RTK Mode)+/- 5 mm +0.4mm/°

LASER POSITIONING

≤ 4.5cm (20m range, ≤ 45° tilt in RTK mode)

Physical Specification

DIMENSIONS

190 mm (H) X 40 mm (W) X 75 mm (L)

WEIGHT

400 grams

OPERATING TEMPERATURE

-40°C to 65°C

STORAGE TEMPERATURE

-40°C to 85°C

WATER/DUST PROOF

IP68 rated

(waterproof and dustproof)

HUMIDITY

5% to 95% non-condensing

TEST COMPLIANCE

Dust: IEC-60529

Water Intrusion: IEC-60529

Vibration/Shock: MIL-STD-810 F

Drop: QM-333 (2 m drop test)

TESTING LAB

NABL ACCREDITED

LASER SAFETY

CLASS II, according to IEC 60825-1

Data Format

Correction Formats

RTCM 2.X, RTCM 3.0, RTCM 3.1, RTCM 3.2, VRS, NTRIP

Position Output

NMEA 0183, LLH/XYZ

Raw Data

RINEX, NMEA

Communication

BLUETOOTH

Bluetooth 5.0 for wireless connectivity

WI-FI

Built-in Wi-Fi 2.4 GHz & 5 GHz, 802.11 b/g/n for network communication & data transfer

NETWORK COMMUNICATION

Internal 4G TDD-LTE/ FDD-LTE/ WCDMA/ GPRS/ GSM (900MHz & 1800 MHz), WCDMA 2100MHZ/900MHZ, LTE BAND 1,3,7,8,20 (via Certified Android Controller)

INTEGRATED UHF RADIO

2 Watt

RADIO RANGE

Urban: 3-5 km *

Rural (Open Area): > 7km *

410-462 MHz

TYPE C

USB Type C port for charging & data transfer

NMEA OUTPUT

NMEA-0183 output for compatibility with external devices over Bluetooth

OPERATING SYSTEM

free RTOS

STARTUP TIME

5 SECONDS

Power Supply

RECHARGEABLE BATTERY

Lithium-ion battery

10,000 mAh (included)

OPERATING PERIOD

Rover Mode - 24 hours

Base Mode - 15 hours

CHARGING TIME

LESS THAN 4 hrs

Positioning Performance

HIGH PRECISION STATIC (PHASE) LONG OBSERVATION

3 mm + 0.1 ppm (horizontal)

3.5 mm + 0.4 ppm (vertical)

FAST STATIC/PPK

3 mm + 0.5 ppm (horizontal)

5 mm + 0.5 ppm (vertical)

REAL TIME KINEMATIC (RTK) TILT

6 mm + 0.5 ppm (horizontal)

10 mm + 1 ppm (vertical)

RTK + 5mm + 0.4mm/° tilt (up to 60°) RMS

RTK-NETWORK/CORS

6 mm + 0.5 ppm (horizontal)

10 mm + 1 ppm (vertical)

PPP LASER RTK

4 cm + 1ppm or better (Horizontal + Vertical)

≤ 4.5cm (20m range, ≤ 45° tilt in RTK mode)

DGPS ACCURACY

25 cm + 1 ppm RMS (horizontal)

40 cm + 1 ppm RMS (vertical)

SBAS: typically <2m 3DRMS

L BAND ACCURACY

2 cm (horizontal)

3 cm (vertical)
