Airace FX6i
The Next Generation GNSS Receiver:
Accuracy and Reliability
OVERVIEW
The FX6i advantage.
Compact size and lightweight
Designed with lightweight and compact features, making them highly portable and easy to use without the need for bulky and cumbersome equipment.
Millimeter accurate data
Intelligent processing techniques include factors such as signal quality, atmospheric interference, and satellite geometry to provide highly accurate and reliable position information.
Anyone on the team can use RTK
The interface is designed to be intuitive and easy to navigate with clear and concise instructions. Anyone can use our GNSS receiver without any training.
EASY SETUP
Up and running in minutes.
Pair, configure, and start collecting centimeter-accurate points, no training required.
01
Pair
Enable Bluetooth & connect to the Airace One app
02
Configure
Enter your NTRIP credentials or set as a base station
03
Survey
Collect points with centimeter-level accuracy

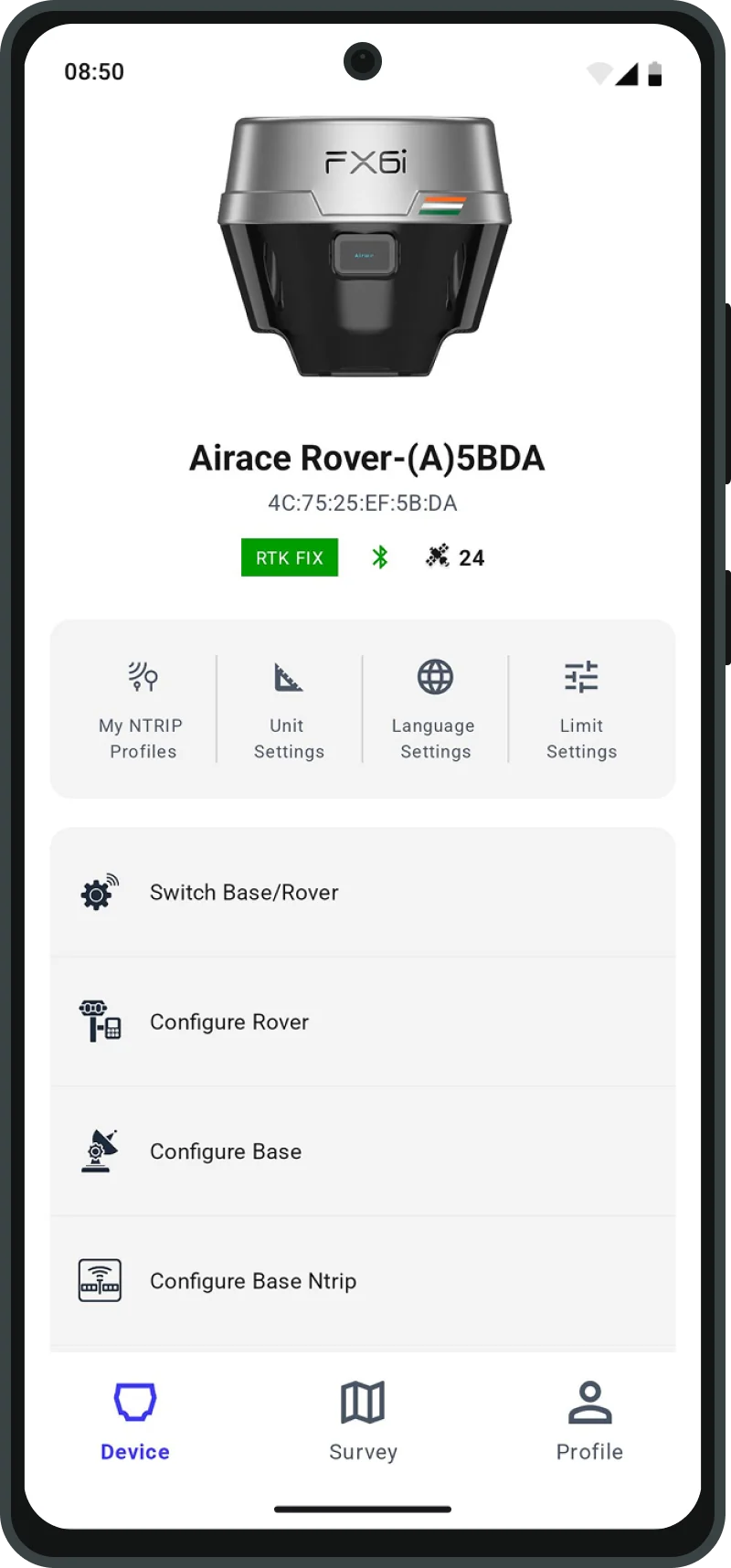

AIRACE ONE APP
Surveying with Airace One.
Save collected points and export to CSV, DXF, KML, and Shapefile formats.
Stakeout, find exact locations of pre-loaded points.
HARDWARE DESIGN
479 g. IP67.
Built for the field.
142 × 110 × 110 mm, compact form factor
Operating temp: -20 °C to +60 °C
Weatherproof, IP67 rated
ALL-DAY POWER
20 hours RTK. Zero compromise.
of continuous work
Li-Ion battery
charge cycles
What Our Users Say
Highly accurate
The Airace FX6i GNSS Receiver offers millimeter level precision that has greatly enhanced our surveying capabilities. The accuracy and reliability of this product have significantly improved our workflow efficiency.
Not sure which receiver fits your workflow?
Compare all Airace receiversarrow_forwardMechanical
| Dimensions | 142 × 110 × 110 mm |
| Weight | 479 g |
| Operating Temp | -20 °C to +60 °C |
| Storage Temp | -40 °C to +80 °C |
| Protection | IP67 |
| Humidity | 100% |
| Display | OLED Screen |
Electrical
| Autonomy | 20 hr (Rover) / 12 hr (Base) |
| Battery | 10,000 mAh Li-Ion |
| Charging | USB-C |
| Charge Time | ~ 4 hr |
Positioning
| Static | H: 2.5 mm + 0.5 ppm / V: 5 mm + 0.5 ppm |
| Rapid Static | H: 2.5 mm + 0.5 ppm / V: 5 mm + 0.5 ppm |
| PPK | H: 5 mm + 0.5 ppm / V: 10 mm + 0.5 ppm |
| Code-based DGNSS | H: 0.25 m + 1 ppm |
| RTK | H: 8 mm + 1 ppm / V: 15 mm + 1 ppm |
Connectivity
| Bluetooth | 5.0 |
| Wi-Fi | 802.11 b/g/n |
| Cellular | 4G LTE (External) |
| USB | USB-C |
| Protocols | NMEA 0183 |
| RTOS | FreeRTOS |
| Start-up | < 5 s |
Data Formats
| Export | CSV, PDF, KML, DXF, SHP |
GNSS
| Constellations | GPS, GLONASS, BeiDou, Galileo, NavIC, QZSS, SBAS |
| Channels | 672+ |
| Update Rate | Up to 20 Hz |
| Storage | 32 GB |
| Max Baseline | 70 km |
| IMU | 9-DOF Tilt Compensation |
